Drag Racing System
Drag Racing
Wireless and hardwired timing, LED starting trees, scoreboards, and race-management software for bracket nights, heads-up events, and national-caliber strips.
What You Get
Professional drag timing, start to finish
A complete RaceAmerica drag racing system covers every phase of the run — pre-stage, stage, reaction time, 60-foot split, mid-track, 1000-foot speed, and finish. Thousandths-of-a-second accuracy across 1/8 mile, 1/4 mile, and 4-lane configurations.
Pair the XL wireless timing console with our LED drag tree, side-of-track scoreboards, and XLscore software to run bracket, index, or heads-up events with full timeslip printing, dial-in boards, and NHRA-style ladders.
What's In The System
Components & products
Wireless Timing Systems
T-Link wireless timing — no conduit to trench down the track. From expandable dual lane through four-lane professional.

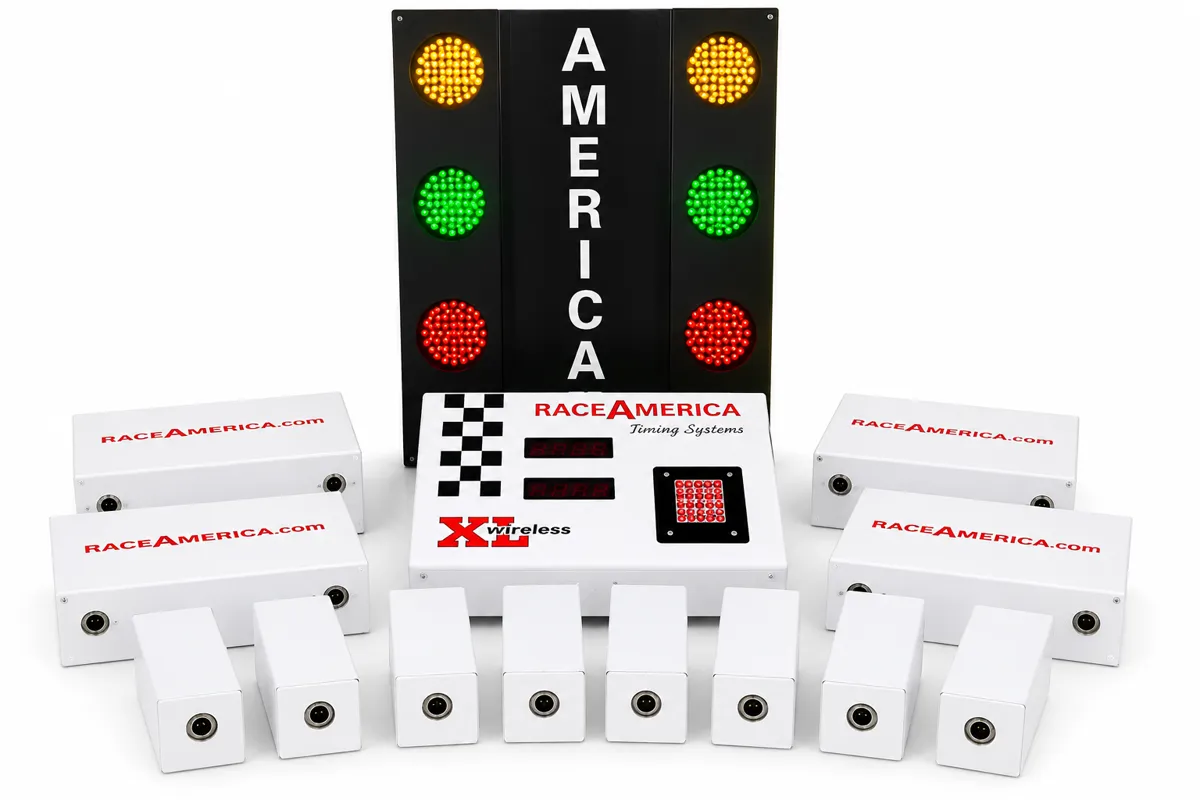

Model 2650H/2650B
2650 Advanced Dual Lane
Expandable, dual-microprocessor drag timing for sanctioned strips.
View Details

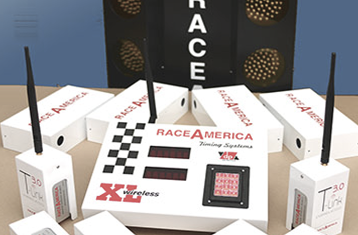

Model 2700B/2700BZ
2700 Wireless/Console based Drag Timing System
World's first fully wireless drag timing system with T-Link 3.0. Full-feature professional timing.
View Details

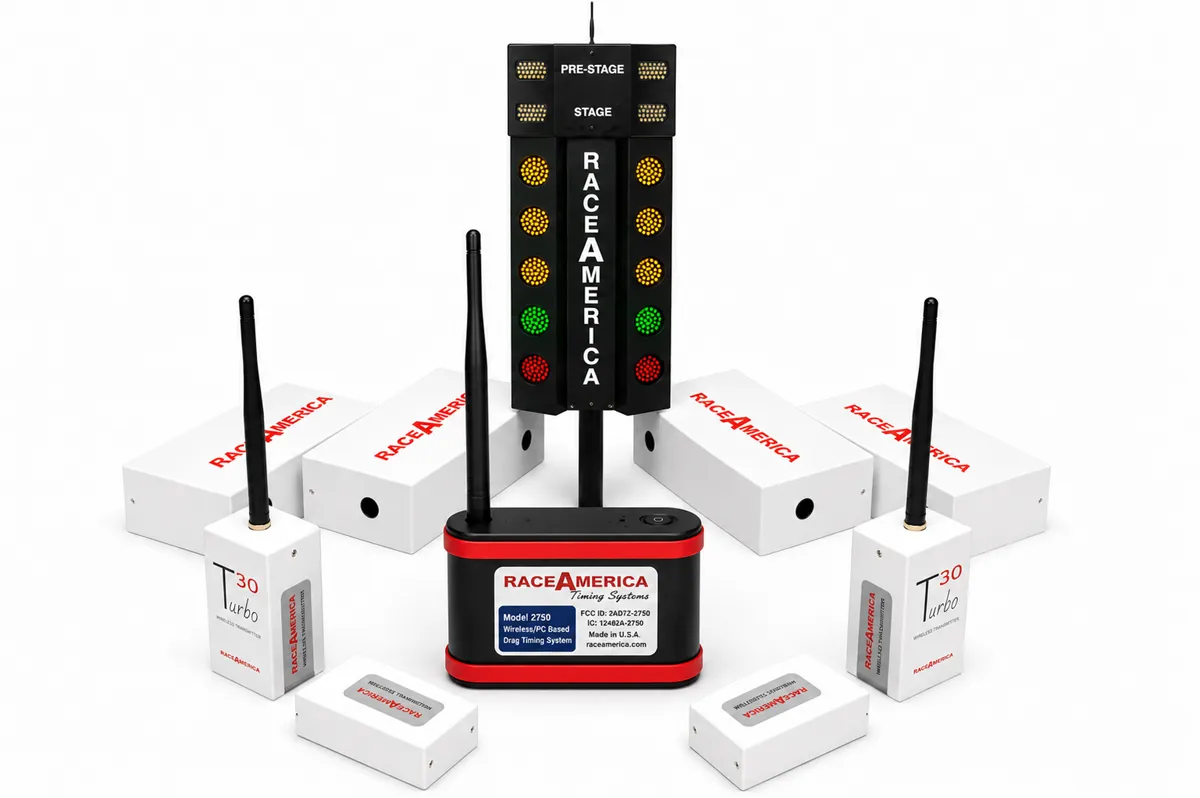

Model 2750
2750 Wireless/PC based Drag Timing System
PC-based XL wireless console for sanctioned programs - race management runs from the tower.
View Details

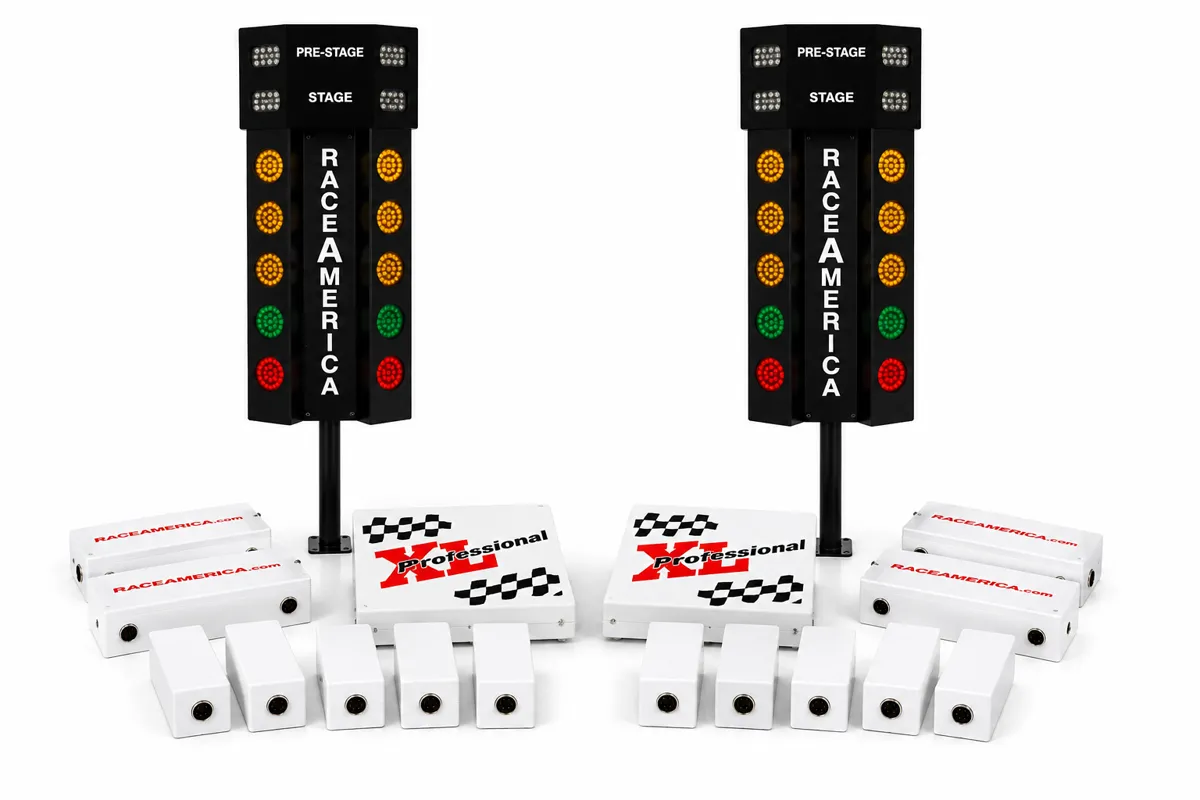

Model 2450
2450 XL S4 Four Lane
4-lane snowmobile, ATV, and sand-drag timing with wireless data links.
View Details
Wired Timing Systems
Hardwired ethernet and cable timing for permanent installs, including the fully redundant 3000 that runs wireless alongside the network.
Model 2751
2751 Ethernet/PC based Drag Timing System
PC-based timing over a hardwired ethernet network — for permanent installs with conduit down the track.
View Details

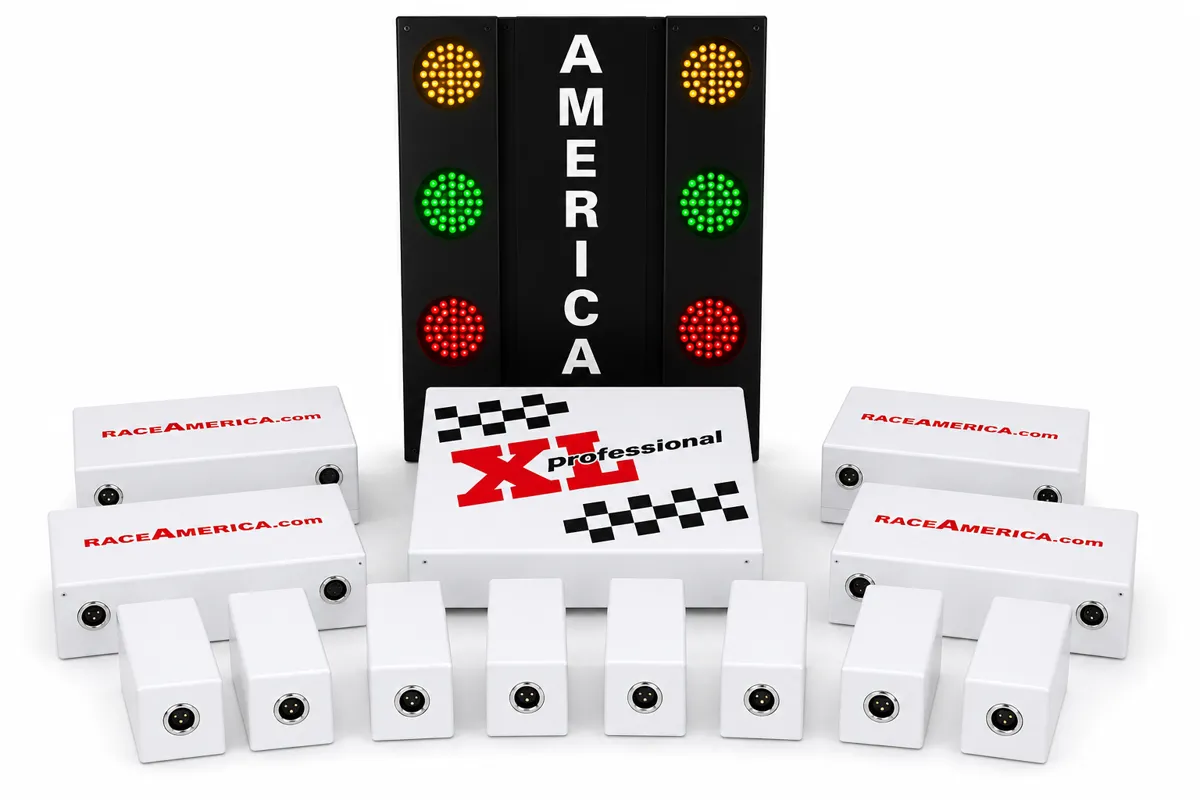

Model 2900
2900 Traditional Wired Professional Dual Lane
Professional PC-controlled dual-lane timing for mid to high-end programs.
View Details
Model 2950 PRO
2950 Pro Central Timing Controller
Sixteen dedicated inputs land your existing fiber or copper home runs — retrofit the tower without pulling up the track.
View Details

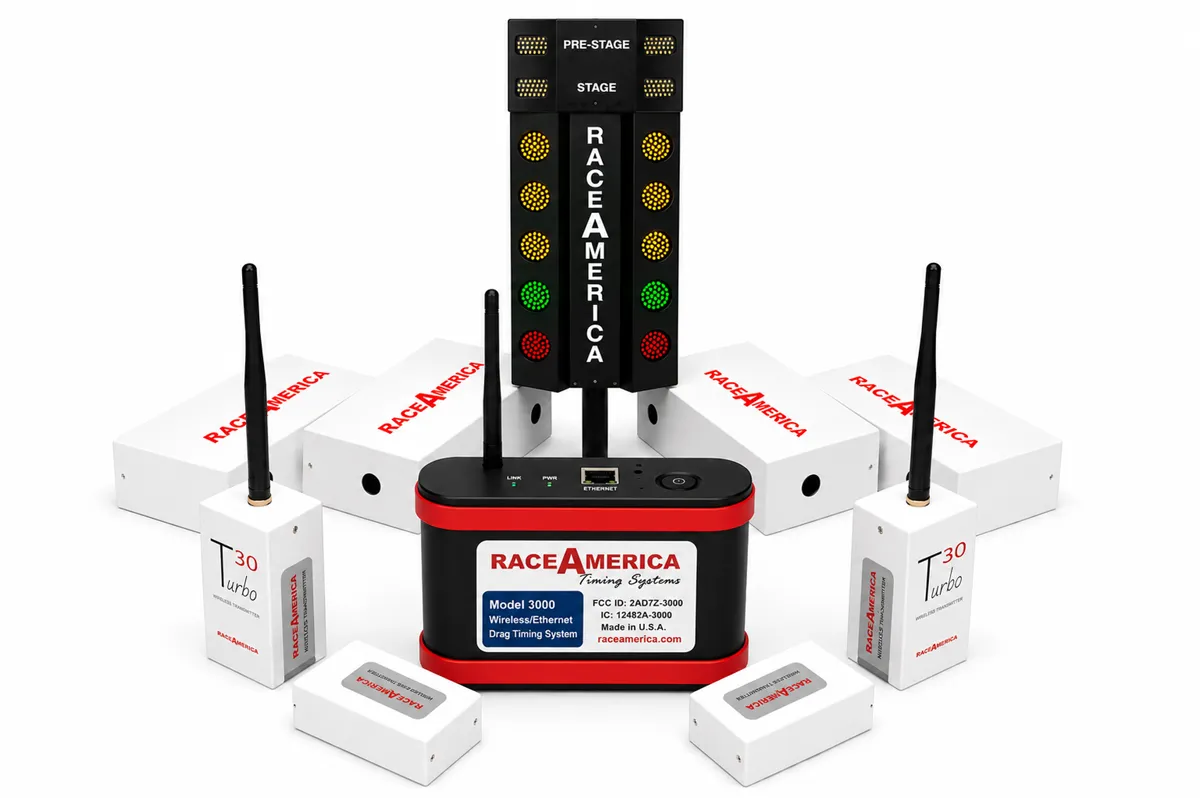

Model 3000
3000 Wireless with redundant ethernet Drag Timing System
The first fully redundant drag timing system - hardwired ethernet and wireless running together.
View Details
Starting Trees
LED trees visible to driver and spectators.
Scoreboards & Dial-In Boards
LED scoreboards in 5” to 24” for every viewing distance.
Model 6828/6810
8-Inch Drag Racing Scoreboard
8in digit LED scoreboard, single or dual line. 320ft viewable.
View Details
Model 6628/6610
15-Inch Drag Racing Scoreboard
15in digit LED scoreboard, single or dual line. 660ft viewable.
View Details
Model 6428/6410
24-Inch Drag Racing Scoreboard
24in digit LED scoreboard for maximum visibility. 1000ft viewable.
View Details
Model 4528D
Dial-In Boards
5in dial-in display boards with two 4-digit displays.
View Details
Track Electronics
Beam emitters, sensors, and split-time detection.
Model 6013C/6013D
60 Foot ET Detection
60ft ET detection (centerline or outside cable).
View Details
Model 6017D1
1000ft Speed & ET Detection
1000ft speed and ET detection for 1/4 mile strips.
View Details
Model 6027A
Dual Beam Start Line Track Electronics
Pre-stage and stage beams for both lanes at the starting line.
View Details
Model 6020C/6020D
Finish Line Speed Detection
Speed detection at finish line up to 400 MPH.
View Details
Race Management Software
XLscore suite — from data capture to full tower control.
Model 3128C
RA Command Drag
Full tower race management — registration, qualifying, and eliminations with 64-car NHRA style ladders. Successor to XLscore PRO.
View Details
RA Vision
Drives LED video walls from the RA Command Drag feed — ready boards, live splits, results, sponsor rotation and instant replay, with layouts that switch themselves.
View Details
RA Monitor — Drag
Live two-lane scoreboard and automatic run logging for an existing 2650 timer. Listen-only, writes every run to a daily spreadsheet file.
View Details
Model 3128B
XLscore PRO
Full race management with class/driver registration, elimination ladders, and tower control.
View Details
Model 3128A
XLscore II
Basic data capture and race management for XL timing systems.
View Details
Model 3126A
XLscore ADV
Data capture software for 2650 XL Advanced systems.
View Details
Ready-to-Buy
Packages for Drag Racing
Pre-configured bundles designed for common facility sizes and budgets. Need something different? Request a custom quote.
Package
Track Start
2700 XL + wireless DTSS tree + dual beam start line + wireless 60ft and end-of-track ET/speed + dual-lane 8in scoreboard + timeslip printer. Our most basic complete strip.
from $18,000
Package
Sportsman
Track Start plus the wireless 330ft ET split, dual-lane 15in wireless scoreboards readable to 660ft, and RA Command Drag race management software.
from $34,000
Package
Sanctioned Strip
2750 XL PC-based console + tri-beam start line + 60ft/330ft/mid-track/1000ft/end-of-track splits + 24in scoreboards with win lights + start line dial-in board + 3040A reflector detection + RA Command Drag. NHRA-caliber.
from $45,000
Package
Professional
3000A XL Wireless and Network — the first fully redundant drag timing system, hardwired ethernet down the track plus wireless controller — with the 3844AW ELITE Multi Link module and dual-line 24in scoreboards.
Request a quote
Package
Four-Lane Snowmobile / ATV
2450 S4 + dual trees + 4-lane finishing order scoreboard + XLscore PRO. For multi-vehicle sand and snow drag events.
Request a quote
FAQ
Questions about this system
Is the wireless system as reliable as hardwired?
Yes. T-Link 3.0 has been in the field for years across thousands of race weekends. It runs on a dedicated 250mW link with error correction, and the timing console includes hardwired fallback connectors.
Can I start with a basic system and upgrade later?
Absolutely. The 2650 Advanced uses the same track electronics, scoreboards, and software hooks as the larger consoles and is upgradeable to the Model 2900 — you can move up without replacing the rest of your system.
Do I need XLscore PRO, or is XLscore II enough?
XLscore II is sufficient for bracket and test-and-tune programs. XLscore PRO adds full tower control, 64-car NHRA ladders, and networked scoreboard integration — required for sanctioned events.
Not sure which timing console fits your strip?
Tell us about your track length, event format, and budget. We'll spec a system — from individual components to a full turnkey build — and send you a quote within one business day.
